Once I had sculpted some clay hexagons I decided to try my luck at creating some negative molds. I used AeroMarine Casting Resin and it did a fantastic job. Just mix the two parts 10:1 ratio (weight) and pour over the clay. I measured it the first time and just used it as a guide as how purple to make the mix on the other pours. Also the purple liquid smelled amazing and always made me very hungry... to bad it would land me in the hospital if I drank it. Note to manufacturers I'm all for masking toxic fumes but let's not go as far as to make people want to consume it either.
Once I had sculpted some clay hexagons I decided to try my luck at creating some negative molds. I used AeroMarine Casting Resin and it did a fantastic job. Just mix the two parts 10:1 ratio (weight) and pour over the clay. I measured it the first time and just used it as a guide as how purple to make the mix on the other pours. Also the purple liquid smelled amazing and always made me very hungry... to bad it would land me in the hospital if I drank it. Note to manufacturers I'm all for masking toxic fumes but let's not go as far as to make people want to consume it either.
.jpg "Settlers of Catan Homemade 3d Pieces Silicone Mold") |
| Casting Hexes |
.JPG "Settlers of Catan Homemade 3d Pieces Silicone Mold") |

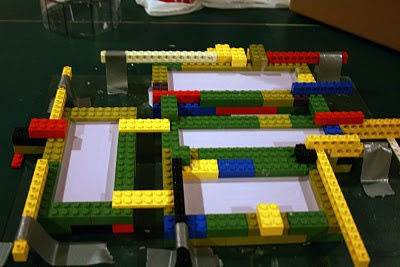

| Casting Settlements/Roads/Cities/Etc using Legos!! |
to work great for this!It did such a great job that the final molds actually captured my fingerprints! Which I kinda of wished I could remove but at the same time it's just proof a human made it instead of a machine.
Once I had the molds in place it was time to start casting!
1-Sculpting | 2-Molds | 3-Casting | 4-Painting |5-Packaging | 6-Finishes
with both the mold and the cast being made of resin, was it hard to seperate them? Did you need to make more molds or did one mold survive the whole set of each piece?
ReplyDeleteThe mold itself (purple stuff) was silicone. The beauty of silicone is that nothing sticks to it except silicone. The cast was a 2 part plastic resin. I used no release agent and was able to make my dozens of duplicates easily. I've heard using a release agent allows one to get 300+ copies from 1 mold!
ReplyDeletewas the mold flexible enough to release figurines with edges and rims (e.g. overlapping roofs) or did you have to take care of creating easy shapes?
ReplyDeleteGenerally the mold is flexible and can handle the in's and out's of the sculptures. I would recommend thinking about the thickness of the silicone surround around the piece. If it is too thick (1") it becomes too rigid to bend and stretch. Most of my molds had silicone at about 1/4" to 1/2" and I could pull/stretch/deform the mold to release the cast easily.
DeleteOne area I remember being challenging was the forest hex where 3 trees touched forming an opening in between them. The silicone poured in between them and under the branches forming a plug shaped piece.
http://4.bp.blogspot.com/-3J2SSxA-lj0/TZUyKgaxNvI/AAAAAAAABFg/M99t6baRTjQ/s400/IMG_2328+%2528Large%2529.JPG
After a dozen or so hexes I started seeing some purple pieces of mold fall off due to all the pulling. It didn't affect the final piece much.
If I would have used a release agent it may have been easier?
